Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsPartyInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

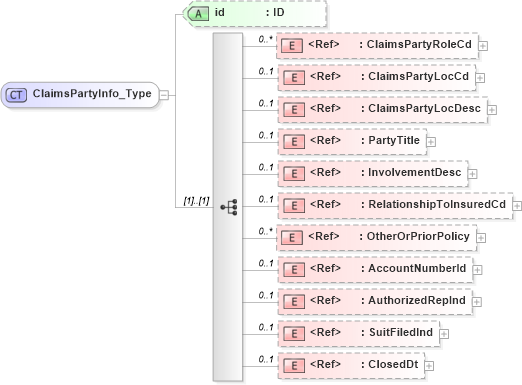

Collapse XSD Schema Diagram:
Drilldown into ClosedDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SuitFiledInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AuthorizedRepInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccountNumberId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OtherOrPriorPolicy in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RelationshipToInsuredCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InvolvementDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PartyTitle in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyLocDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyLocCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyRoleCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsPartyInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsPartyInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ClaimsPartyRoleCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ClaimsPartyLocCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsPartyLocDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PartyTitle" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InvolvementDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RelationshipToInsuredCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OtherOrPriorPolicy" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AccountNumberId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AuthorizedRepInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SuitFiledInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClosedDt" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClaimsPartyRoleCd nsC:ClaimsPartyRoleCd 0 unbounded
ClaimsPartyLocCd nsC:ClaimsPartyLocCd 0 1
ClaimsPartyLocDesc nsC:ClaimsPartyLocDesc 0 1
PartyTitle nsC:PartyTitle 0 1
InvolvementDesc nsC:InvolvementDesc 0 1
RelationshipToInsuredCd nsC:RelationshipToInsuredCd 0 1
OtherOrPriorPolicy nsC:OtherOrPriorPolicy 0 unbounded
AccountNumberId nsC:AccountNumberId 0 1
AuthorizedRepInd nsC:AuthorizedRepInd 0 1
SuitFiledInd nsC:SuitFiledInd 0 1
ClosedDt nsC:ClosedDt 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsPartyInfo
