Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsPayment_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

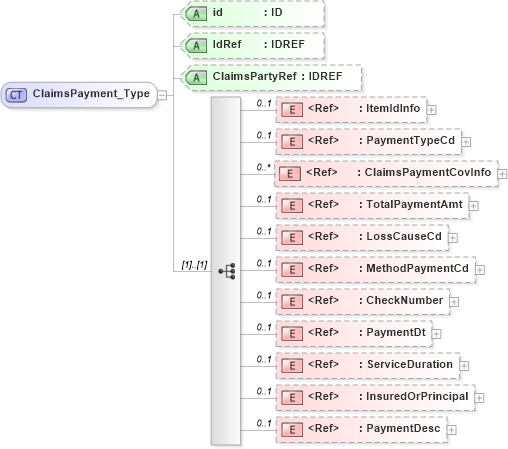

Collapse XSD Schema Diagram:
Drilldown into PaymentDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuredOrPrincipal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ServiceDuration in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CheckNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MethodPaymentCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LossCauseCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TotalPaymentAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPaymentCovInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into IdRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsPayment_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsPayment_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsPaymentCovInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TotalPaymentAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LossCauseCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MethodPaymentCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CheckNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ServiceDuration" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InsuredOrPrincipal" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentDesc" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="IdRef" type="IDREF" />
    <xsd:attribute name="ClaimsPartyRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIdInfo nsC:ItemIdInfo 0 1
PaymentTypeCd nsC:PaymentTypeCd 0 1
ClaimsPaymentCovInfo nsC:ClaimsPaymentCovInfo 0 unbounded
TotalPaymentAmt nsC:TotalPaymentAmt 0 1
LossCauseCd nsC:LossCauseCd 0 1
MethodPaymentCd nsC:MethodPaymentCd 0 1
CheckNumber nsC:CheckNumber 0 1
PaymentDt nsC:PaymentDt 0 1
ServiceDuration nsC:ServiceDuration 0 1
InsuredOrPrincipal nsC:InsuredOrPrincipal 0 1
PaymentDesc nsC:PaymentDesc 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
IdRef nsC:IdRef (Optional)
ClaimsPartyRef nsC:ClaimsPartyRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsPayment
