Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsPaymentCovInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

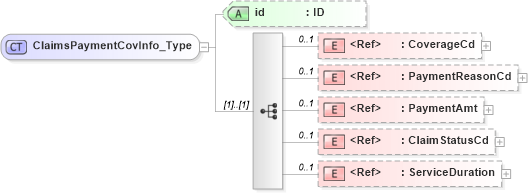

Collapse XSD Schema Diagram:
Drilldown into ServiceDuration in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimStatusCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentReasonCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CoverageCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsPaymentCovInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsPaymentCovInfo_Type">
    <xsd:sequence>
        <xsd:element ref="CoverageCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentReasonCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimStatusCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ServiceDuration" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoverageCd nsC:CoverageCd 0 1
PaymentReasonCd nsC:PaymentReasonCd 0 1
PaymentAmt nsC:PaymentAmt 0 1
ClaimStatusCd nsC:ClaimStatusCd 0 1
ServiceDuration nsC:ServiceDuration 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsPaymentCovInfo
