Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsSubjectInsuranceInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

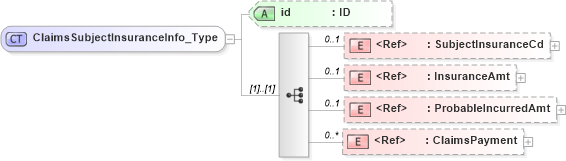

Collapse XSD Schema Diagram:
Drilldown into ClaimsPayment in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProbableIncurredAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuranceAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SubjectInsuranceCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsSubjectInsuranceInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsSubjectInsuranceInfo_Type">
    <xsd:sequence>
        <xsd:element ref="SubjectInsuranceCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InsuranceAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ProbableIncurredAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsPayment" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubjectInsuranceCd nsC:SubjectInsuranceCd 0 1
InsuranceAmt nsC:InsuranceAmt 0 1
ProbableIncurredAmt nsC:ProbableIncurredAmt 0 1
ClaimsPayment nsC:ClaimsPayment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsSubjectInsuranceInfo
