Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: CommlAutoDriveOtherCarInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

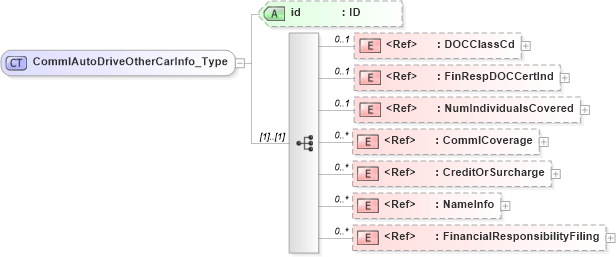

Collapse XSD Schema Diagram:
Drilldown into FinancialResponsibilityFiling in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NameInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CreditOrSurcharge in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommlCoverage in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumIndividualsCovered in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FinRespDOCCertInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DOCClassCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of CommlAutoDriveOtherCarInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="CommlAutoDriveOtherCarInfo_Type">
    <xsd:sequence>
        <xsd:element ref="DOCClassCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FinRespDOCCertInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumIndividualsCovered" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CommlCoverage" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditOrSurcharge" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NameInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FinancialResponsibilityFiling" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DOCClassCd nsC:DOCClassCd 0 1
FinRespDOCCertInd nsC:FinRespDOCCertInd 0 1
NumIndividualsCovered nsC:NumIndividualsCovered 0 1
CommlCoverage nsC:CommlCoverage 0 unbounded
CreditOrSurcharge nsC:CreditOrSurcharge 0 unbounded
NameInfo nsC:NameInfo 0 unbounded
FinancialResponsibilityFiling nsC:FinancialResponsibilityFiling 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:CommlAutoDriveOtherCarInfo
