Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: Group
Name: COMMLDRIVERSCHEDULEINFO
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd

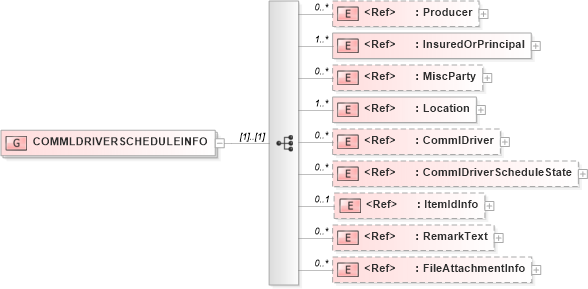

Collapse XSD Schema Diagram:
Drilldown into FileAttachmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RemarkText in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommlDriverScheduleState in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommlDriver in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Location in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MiscParty in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuredOrPrincipal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Producer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of COMMLDRIVERSCHEDULEINFO in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:group name="COMMLDRIVERSCHEDULEINFO">
    <xsd:sequence>
        <xsd:element ref="Producer" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InsuredOrPrincipal" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="MiscParty" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Location" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="CommlDriver" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CommlDriverScheduleState" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RemarkText" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FileAttachmentInfo" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Producer nsC:Producer 0 unbounded
InsuredOrPrincipal nsC:InsuredOrPrincipal 1 unbounded
MiscParty nsC:MiscParty 0 unbounded
Location nsC:Location 1 unbounded
CommlDriver nsC:CommlDriver 0 unbounded
CommlDriverScheduleState nsC:CommlDriverScheduleState 0 unbounded
ItemIdInfo nsC:ItemIdInfo 0 1
RemarkText nsC:RemarkText 0 unbounded
FileAttachmentInfo nsC:FileAttachmentInfo 0 unbounded
