Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: DriverInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract
Collapse XSD Schema Diagram:

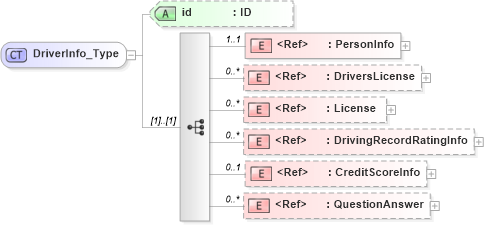

Drilldown into QuestionAnswer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CreditScoreInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DrivingRecordRatingInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into License in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DriversLicense in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PersonInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of DriverInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="DriverInfo_Type">
    <xsd:sequence>
        <xsd:element ref="PersonInfo" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="DriversLicense" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="License" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DrivingRecordRatingInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CreditScoreInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QuestionAnswer" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonInfo nsC:PersonInfo 1 1
DriversLicense nsC:DriversLicense 0 unbounded
License nsC:License 0 unbounded
DrivingRecordRatingInfo nsC:DrivingRecordRatingInfo 0 unbounded
CreditScoreInfo nsC:CreditScoreInfo 0 1
QuestionAnswer nsC:QuestionAnswer 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:DriverInfo
