Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: EmployeePay_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

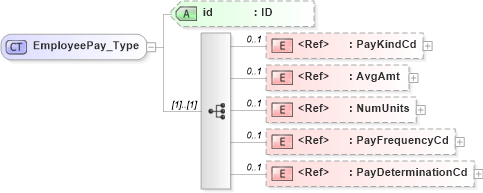

Collapse XSD Schema Diagram:
Drilldown into PayDeterminationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PayFrequencyCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumUnits in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AvgAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PayKindCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of EmployeePay_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="EmployeePay_Type">
    <xsd:sequence>
        <xsd:element ref="PayKindCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AvgAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumUnits" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PayFrequencyCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PayDeterminationCd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PayKindCd nsC:PayKindCd 0 1
AvgAmt nsC:AvgAmt 0 1
NumUnits nsC:NumUnits 0 1
PayFrequencyCd nsC:PayFrequencyCd 0 1
PayDeterminationCd nsC:PayDeterminationCd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:EmployeePay
