Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: EmployeeSchedule_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

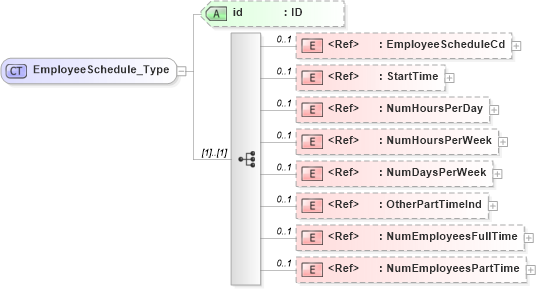

Collapse XSD Schema Diagram:
Drilldown into NumEmployeesPartTime in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumEmployeesFullTime in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OtherPartTimeInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumDaysPerWeek in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumHoursPerWeek in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumHoursPerDay in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StartTime in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EmployeeScheduleCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of EmployeeSchedule_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="EmployeeSchedule_Type">
    <xsd:sequence>
        <xsd:element ref="EmployeeScheduleCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StartTime" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumHoursPerDay" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumHoursPerWeek" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumDaysPerWeek" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OtherPartTimeInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumEmployeesFullTime" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumEmployeesPartTime" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmployeeScheduleCd nsC:EmployeeScheduleCd 0 1
StartTime nsC:StartTime 0 1
NumHoursPerDay nsC:NumHoursPerDay 0 1
NumHoursPerWeek nsC:NumHoursPerWeek 0 1
NumDaysPerWeek nsC:NumDaysPerWeek 0 1
OtherPartTimeInd nsC:OtherPartTimeInd 0 1
NumEmployeesFullTime nsC:NumEmployeesFullTime 0 1
NumEmployeesPartTime nsC:NumEmployeesPartTime 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:EmployeeSchedule
