Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: FileAttachmentInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

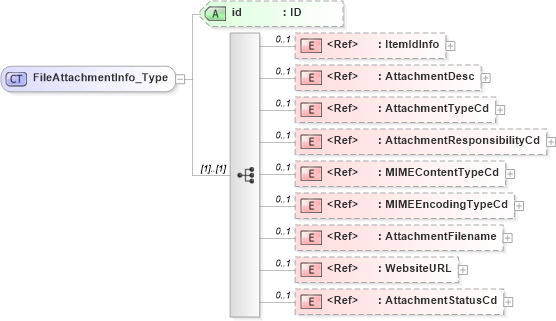

Collapse XSD Schema Diagram:
Drilldown into AttachmentStatusCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WebsiteURL in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AttachmentFilename in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MIMEEncodingTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MIMEContentTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AttachmentResponsibilityCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AttachmentTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AttachmentDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of FileAttachmentInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="FileAttachmentInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AttachmentDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AttachmentTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AttachmentResponsibilityCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MIMEContentTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MIMEEncodingTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AttachmentFilename" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="WebsiteURL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AttachmentStatusCd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIdInfo nsC:ItemIdInfo 0 1
AttachmentDesc nsC:AttachmentDesc 0 1
AttachmentTypeCd nsC:AttachmentTypeCd 0 1
AttachmentResponsibilityCd nsC:AttachmentResponsibilityCd 0 1
MIMEContentTypeCd nsC:MIMEContentTypeCd 0 1
MIMEEncodingTypeCd nsC:MIMEEncodingTypeCd 0 1
AttachmentFilename nsC:AttachmentFilename 0 1
WebsiteURL nsC:WebsiteURL 0 1
AttachmentStatusCd nsC:AttachmentStatusCd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:FileAttachmentInfo
