Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: FromAcct_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

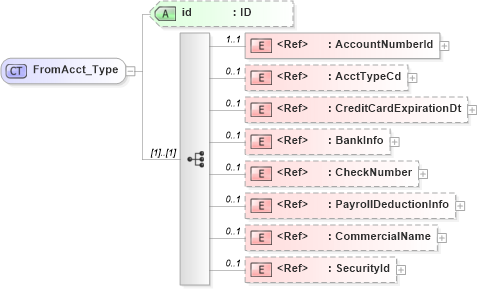

Collapse XSD Schema Diagram:
Drilldown into SecurityId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommercialName in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PayrollDeductionInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CheckNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BankInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CreditCardExpirationDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AcctTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccountNumberId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of FromAcct_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="FromAcct_Type">
    <xsd:sequence>
        <xsd:element ref="AccountNumberId" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="AcctTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CreditCardExpirationDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BankInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CheckNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PayrollDeductionInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CommercialName" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SecurityId" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AccountNumberId nsC:AccountNumberId 1 1
AcctTypeCd nsC:AcctTypeCd 0 1
CreditCardExpirationDt nsC:CreditCardExpirationDt 0 1
BankInfo nsC:BankInfo 0 1
CheckNumber nsC:CheckNumber 0 1
PayrollDeductionInfo nsC:PayrollDeductionInfo 0 1
CommercialName nsC:CommercialName 0 1
SecurityId nsC:SecurityId 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:FromAcct
