Definition Type: Element
Name: illustration
Namespace: http://www.ACORD.org/standards/Support/xml/v1.0
Containing Schema: acord-doc.xsd
Abstract
Collapse XSD Schema Diagram:

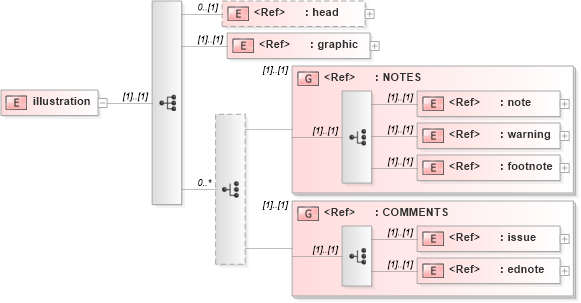

Drilldown into ednote in schema acord-doc_xsd Drilldown into issue in schema acord-doc_xsd Drilldown into COMMENTS in schema acord-doc_xsd Drilldown into footnote in schema acord-doc_xsd Drilldown into warning in schema acord-doc_xsd Drilldown into note in schema acord-doc_xsd Drilldown into NOTES in schema acord-doc_xsd Drilldown into graphic in schema acord-doc_xsd Drilldown into head in schema acord-doc_xsdXSD Diagram of illustration in schema acord-doc_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:element name="illustration">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element ref="head" minOccurs="0" />
            <xsd:element ref="graphic" />
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:group ref="NOTES" />
                <xsd:group ref="COMMENTS" />
            </xsd:choice>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
head nsB:head 0 (1)
graphic nsB:graphic (1) (1)
note nsB:note (1) (1)
warning nsB:warning (1) (1)
footnote nsB:footnote (1) (1)
issue nsB:issue (1) (1)
ednote nsB:ednote (1) (1)
<xs:group> nsB:NOTES (1) (1)
<xs:group> nsB:COMMENTS (1) (1)
