Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: InstallmentInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

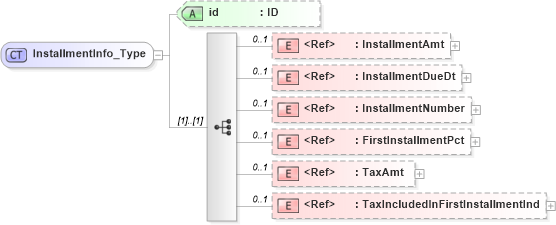

Collapse XSD Schema Diagram:
Drilldown into TaxIncludedInFirstInstallmentInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TaxAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FirstInstallmentPct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentDueDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of InstallmentInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="InstallmentInfo_Type">
    <xsd:sequence>
        <xsd:element ref="InstallmentAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentDueDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FirstInstallmentPct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TaxAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TaxIncludedInFirstInstallmentInd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InstallmentAmt nsC:InstallmentAmt 0 1
InstallmentDueDt nsC:InstallmentDueDt 0 1
InstallmentNumber nsC:InstallmentNumber 0 1
FirstInstallmentPct nsC:FirstInstallmentPct 0 1
TaxAmt nsC:TaxAmt 0 1
TaxIncludedInFirstInstallmentInd nsC:TaxIncludedInFirstInstallmentInd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:InstallmentInfo
