Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: LiabilityAuditExposureInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

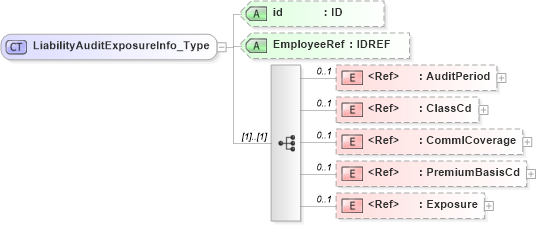

Collapse XSD Schema Diagram:
Drilldown into Exposure in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PremiumBasisCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommlCoverage in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClassCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AuditPeriod in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EmployeeRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of LiabilityAuditExposureInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="LiabilityAuditExposureInfo_Type">
    <xsd:sequence>
        <xsd:element ref="AuditPeriod" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClassCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CommlCoverage" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PremiumBasisCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Exposure" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="EmployeeRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AuditPeriod nsC:AuditPeriod 0 1
ClassCd nsC:ClassCd 0 1
CommlCoverage nsC:CommlCoverage 0 1
PremiumBasisCd nsC:PremiumBasisCd 0 1
Exposure nsC:Exposure 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
EmployeeRef nsC:EmployeeRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:LiabilityAuditExposureInfo
