Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: MediaAndDataInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

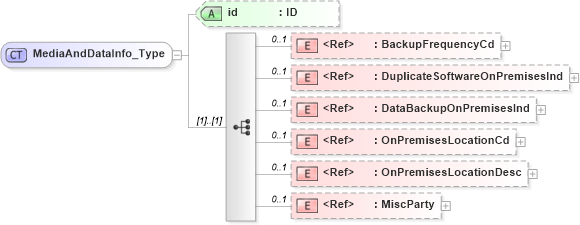

Collapse XSD Schema Diagram:
Drilldown into MiscParty in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OnPremisesLocationDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OnPremisesLocationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DataBackupOnPremisesInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DuplicateSoftwareOnPremisesInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BackupFrequencyCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of MediaAndDataInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MediaAndDataInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BackupFrequencyCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DuplicateSoftwareOnPremisesInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DataBackupOnPremisesInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OnPremisesLocationCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OnPremisesLocationDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MiscParty" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BackupFrequencyCd nsC:BackupFrequencyCd 0 1
DuplicateSoftwareOnPremisesInd nsC:DuplicateSoftwareOnPremisesInd 0 1
DataBackupOnPremisesInd nsC:DataBackupOnPremisesInd 0 1
OnPremisesLocationCd nsC:OnPremisesLocationCd 0 1
OnPremisesLocationDesc nsC:OnPremisesLocationDesc 0 1
MiscParty nsC:MiscParty 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:MediaAndDataInfo
