Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: MobileHome_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

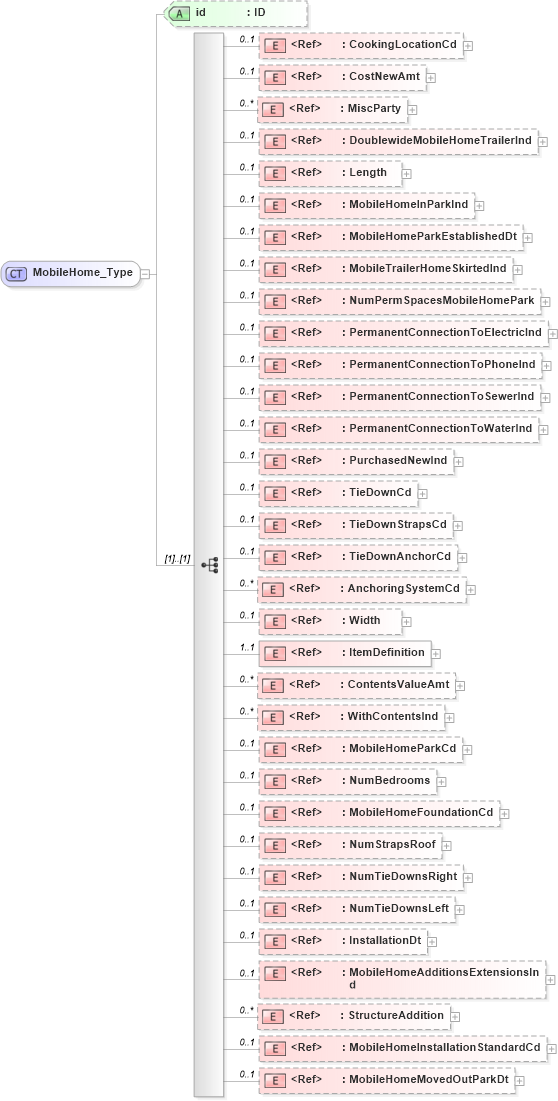

Collapse XSD Schema Diagram:
Drilldown into MobileHomeMovedOutParkDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeInstallationStandardCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StructureAddition in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeAdditionsExtensionsInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallationDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumTieDownsLeft in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumTieDownsRight in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumStrapsRoof in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeFoundationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumBedrooms in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeParkCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WithContentsInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ContentsValueAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemDefinition in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Width in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AnchoringSystemCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TieDownAnchorCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TieDownStrapsCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TieDownCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PurchasedNewInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PermanentConnectionToWaterInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PermanentConnectionToSewerInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PermanentConnectionToPhoneInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PermanentConnectionToElectricInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumPermSpacesMobileHomePark in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileTrailerHomeSkirtedInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeParkEstablishedDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MobileHomeInParkInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Length in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DoublewideMobileHomeTrailerInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MiscParty in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CostNewAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CookingLocationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of MobileHome_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MobileHome_Type">
    <xsd:sequence>
        <xsd:element ref="CookingLocationCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CostNewAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MiscParty" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DoublewideMobileHomeTrailerInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Length" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileHomeInParkInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileHomeParkEstablishedDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileTrailerHomeSkirtedInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumPermSpacesMobileHomePark" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PermanentConnectionToElectricInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PermanentConnectionToPhoneInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PermanentConnectionToSewerInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PermanentConnectionToWaterInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PurchasedNewInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TieDownCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TieDownStrapsCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TieDownAnchorCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AnchoringSystemCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Width" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ItemDefinition" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ContentsValueAmt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="WithContentsInd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MobileHomeParkCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumBedrooms" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileHomeFoundationCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumStrapsRoof" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumTieDownsRight" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumTieDownsLeft" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallationDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileHomeAdditionsExtensionsInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StructureAddition" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MobileHomeInstallationStandardCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MobileHomeMovedOutParkDt" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CookingLocationCd nsC:CookingLocationCd 0 1
CostNewAmt nsC:CostNewAmt 0 1
MiscParty nsC:MiscParty 0 unbounded
DoublewideMobileHomeTrailerInd nsC:DoublewideMobileHomeTrailerInd 0 1
Length nsC:Length 0 1
MobileHomeInParkInd nsC:MobileHomeInParkInd 0 1
MobileHomeParkEstablishedDt nsC:MobileHomeParkEstablishedDt 0 1
MobileTrailerHomeSkirtedInd nsC:MobileTrailerHomeSkirtedInd 0 1
NumPermSpacesMobileHomePark nsC:NumPermSpacesMobileHomePark 0 1
PermanentConnectionToElectricInd nsC:PermanentConnectionToElectricInd 0 1
PermanentConnectionToPhoneInd nsC:PermanentConnectionToPhoneInd 0 1
PermanentConnectionToSewerInd nsC:PermanentConnectionToSewerInd 0 1
PermanentConnectionToWaterInd nsC:PermanentConnectionToWaterInd 0 1
PurchasedNewInd nsC:PurchasedNewInd 0 1
TieDownCd nsC:TieDownCd 0 1
TieDownStrapsCd nsC:TieDownStrapsCd 0 1
TieDownAnchorCd nsC:TieDownAnchorCd 0 1
AnchoringSystemCd nsC:AnchoringSystemCd 0 unbounded
Width nsC:Width 0 1
ItemDefinition nsC:ItemDefinition 1 1
ContentsValueAmt nsC:ContentsValueAmt 0 unbounded
WithContentsInd nsC:WithContentsInd 0 unbounded
MobileHomeParkCd nsC:MobileHomeParkCd 0 1
NumBedrooms nsC:NumBedrooms 0 1
MobileHomeFoundationCd nsC:MobileHomeFoundationCd 0 1
NumStrapsRoof nsC:NumStrapsRoof 0 1
NumTieDownsRight nsC:NumTieDownsRight 0 1
NumTieDownsLeft nsC:NumTieDownsLeft 0 1
InstallationDt nsC:InstallationDt 0 1
MobileHomeAdditionsExtensionsInd nsC:MobileHomeAdditionsExtensionsInd 0 1
StructureAddition nsC:StructureAddition 0 unbounded
MobileHomeInstallationStandardCd nsC:MobileHomeInstallationStandardCd 0 1
MobileHomeMovedOutParkDt nsC:MobileHomeMovedOutParkDt 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:MobileHome
