Definition Type: ComplexType
Name: ModInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

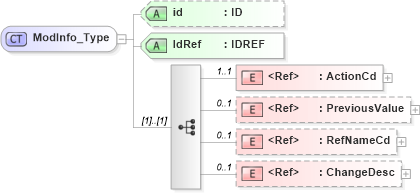

Collapse XSD Schema Diagram:
Drilldown into ChangeDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RefNameCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PreviousValue in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ActionCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into IdRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ModInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ModInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ActionCd" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PreviousValue" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RefNameCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ChangeDesc" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="IdRef" type="IDREF" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCd nsC:ActionCd 1 1
PreviousValue nsC:PreviousValue 0 1
RefNameCd nsC:RefNameCd 0 1
ChangeDesc nsC:ChangeDesc 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
IdRef nsC:IdRef Required
Collapse Derivation Tree:
Collapse References:
nsC:ModInfo
