Definition Type: ComplexType
Name: MsgSetInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

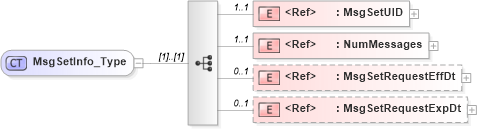

Collapse XSD Schema Diagram:
Drilldown into MsgSetRequestExpDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetRequestEffDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumMessages in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of MsgSetInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MsgSetInfo_Type">
    <xsd:sequence>
        <xsd:element ref="MsgSetUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NumMessages" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MsgSetRequestEffDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MsgSetRequestExpDt" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MsgSetUID nsC:MsgSetUID 1 1
NumMessages nsC:NumMessages 1 1
MsgSetRequestEffDt nsC:MsgSetRequestEffDt 0 1
MsgSetRequestExpDt nsC:MsgSetRequestExpDt 0 1
Collapse Derivation Tree:
Collapse References:
nsC:MsgSetInfo
