Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: MsgSetResponsePullRs_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

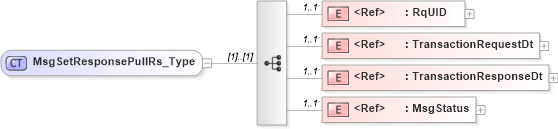

Collapse XSD Schema Diagram:
Drilldown into MsgStatus in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionResponseDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionRequestDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of MsgSetResponsePullRs_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MsgSetResponsePullRs_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="TransactionRequestDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="TransactionResponseDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MsgStatus" minOccurs="1" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID nsC:RqUID 1 1
TransactionRequestDt nsC:TransactionRequestDt 1 1
TransactionResponseDt nsC:TransactionResponseDt 1 1
MsgStatus nsC:MsgStatus 1 1
Collapse Derivation Tree:
Collapse References:
nsC:MsgSetResponsePullRs
