Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: MsgStatus_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

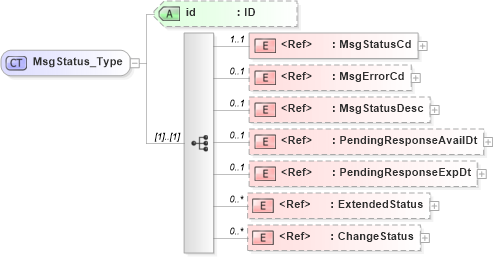

Collapse XSD Schema Diagram:
Drilldown into ChangeStatus in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ExtendedStatus in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PendingResponseExpDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PendingResponseAvailDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgStatusDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgErrorCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgStatusCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of MsgStatus_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="MsgStatus_Type">
    <xsd:sequence>
        <xsd:element ref="MsgStatusCd" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MsgErrorCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MsgStatusDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PendingResponseAvailDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PendingResponseExpDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ExtendedStatus" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ChangeStatus" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MsgStatusCd nsC:MsgStatusCd 1 1
MsgErrorCd nsC:MsgErrorCd 0 1
MsgStatusDesc nsC:MsgStatusDesc 0 1
PendingResponseAvailDt nsC:PendingResponseAvailDt 0 1
PendingResponseExpDt nsC:PendingResponseExpDt 0 1
ExtendedStatus nsC:ExtendedStatus 0 unbounded
ChangeStatus nsC:ChangeStatus 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:MsgStatus
