Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: PaymentOption_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

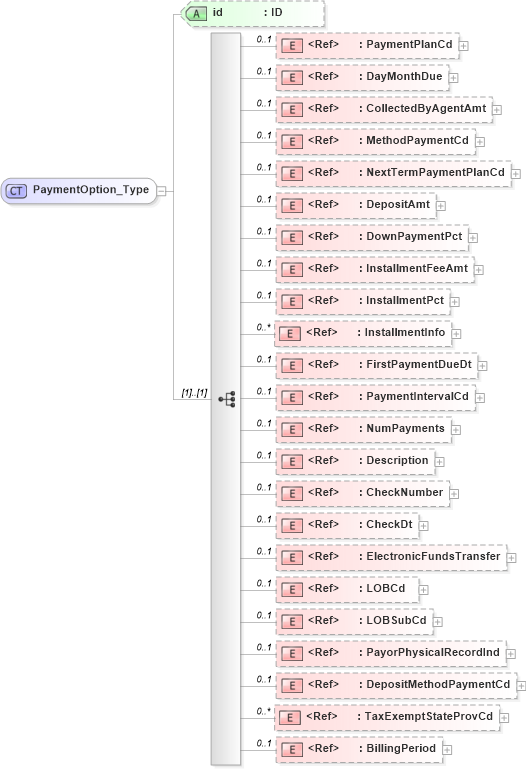

Collapse XSD Schema Diagram:
Drilldown into BillingPeriod in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TaxExemptStateProvCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DepositMethodPaymentCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PayorPhysicalRecordInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LOBSubCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LOBCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ElectronicFundsTransfer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CheckDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CheckNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Description in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumPayments in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentIntervalCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FirstPaymentDueDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentPct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentFeeAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DownPaymentPct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DepositAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NextTermPaymentPlanCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MethodPaymentCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CollectedByAgentAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DayMonthDue in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaymentPlanCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of PaymentOption_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="PaymentOption_Type">
    <xsd:sequence>
        <xsd:element ref="PaymentPlanCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DayMonthDue" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CollectedByAgentAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MethodPaymentCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NextTermPaymentPlanCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DepositAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DownPaymentPct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentFeeAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentPct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FirstPaymentDueDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaymentIntervalCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumPayments" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Description" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CheckNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CheckDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ElectronicFundsTransfer" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LOBCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LOBSubCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PayorPhysicalRecordInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DepositMethodPaymentCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TaxExemptStateProvCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BillingPeriod" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PaymentPlanCd nsC:PaymentPlanCd 0 1
DayMonthDue nsC:DayMonthDue 0 1
CollectedByAgentAmt nsC:CollectedByAgentAmt 0 1
MethodPaymentCd nsC:MethodPaymentCd 0 1
NextTermPaymentPlanCd nsC:NextTermPaymentPlanCd 0 1
DepositAmt nsC:DepositAmt 0 1
DownPaymentPct nsC:DownPaymentPct 0 1
InstallmentFeeAmt nsC:InstallmentFeeAmt 0 1
InstallmentPct nsC:InstallmentPct 0 1
InstallmentInfo nsC:InstallmentInfo 0 unbounded
FirstPaymentDueDt nsC:FirstPaymentDueDt 0 1
PaymentIntervalCd nsC:PaymentIntervalCd 0 1
NumPayments nsC:NumPayments 0 1
Description nsC:Description 0 1
CheckNumber nsC:CheckNumber 0 1
CheckDt nsC:CheckDt 0 1
ElectronicFundsTransfer nsC:ElectronicFundsTransfer 0 1
LOBCd nsC:LOBCd 0 1
LOBSubCd nsC:LOBSubCd 0 1
PayorPhysicalRecordInd nsC:PayorPhysicalRecordInd 0 1
DepositMethodPaymentCd nsC:DepositMethodPaymentCd 0 1
TaxExemptStateProvCd nsC:TaxExemptStateProvCd 0 unbounded
BillingPeriod nsC:BillingPeriod 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:PaymentOption
