Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: PersApplicationInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

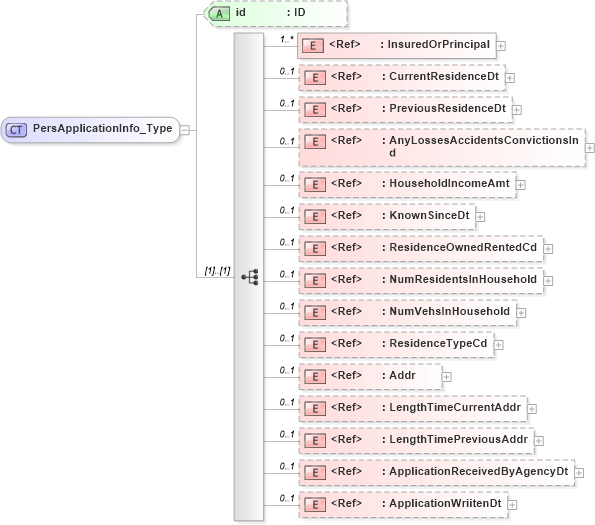

Collapse XSD Schema Diagram:
Drilldown into ApplicationWriitenDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ApplicationReceivedByAgencyDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LengthTimePreviousAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LengthTimeCurrentAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ResidenceTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumVehsInHousehold in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumResidentsInHousehold in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ResidenceOwnedRentedCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into KnownSinceDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into HouseholdIncomeAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AnyLossesAccidentsConvictionsInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PreviousResidenceDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CurrentResidenceDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuredOrPrincipal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of PersApplicationInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="PersApplicationInfo_Type">
    <xsd:sequence>
        <xsd:element ref="InsuredOrPrincipal" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="CurrentResidenceDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PreviousResidenceDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AnyLossesAccidentsConvictionsInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="HouseholdIncomeAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="KnownSinceDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ResidenceOwnedRentedCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumResidentsInHousehold" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumVehsInHousehold" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ResidenceTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Addr" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LengthTimeCurrentAddr" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LengthTimePreviousAddr" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ApplicationReceivedByAgencyDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ApplicationWriitenDt" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InsuredOrPrincipal nsC:InsuredOrPrincipal 1 unbounded
CurrentResidenceDt nsC:CurrentResidenceDt 0 1
PreviousResidenceDt nsC:PreviousResidenceDt 0 1
AnyLossesAccidentsConvictionsInd nsC:AnyLossesAccidentsConvictionsInd 0 1
HouseholdIncomeAmt nsC:HouseholdIncomeAmt 0 1
KnownSinceDt nsC:KnownSinceDt 0 1
ResidenceOwnedRentedCd nsC:ResidenceOwnedRentedCd 0 1
NumResidentsInHousehold nsC:NumResidentsInHousehold 0 1
NumVehsInHousehold nsC:NumVehsInHousehold 0 1
ResidenceTypeCd nsC:ResidenceTypeCd 0 1
Addr nsC:Addr 0 1
LengthTimeCurrentAddr nsC:LengthTimeCurrentAddr 0 1
LengthTimePreviousAddr nsC:LengthTimePreviousAddr 0 1
ApplicationReceivedByAgencyDt nsC:ApplicationReceivedByAgencyDt 0 1
ApplicationWriitenDt nsC:ApplicationWriitenDt 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:PersApplicationInfo
