Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: PhoneInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

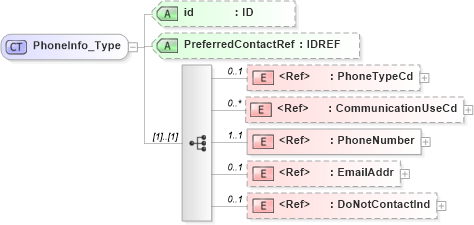

Collapse XSD Schema Diagram:
Drilldown into DoNotContactInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EmailAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PhoneNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommunicationUseCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PhoneTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PreferredContactRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of PhoneInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="PhoneInfo_Type">
    <xsd:sequence>
        <xsd:element ref="PhoneTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CommunicationUseCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PhoneNumber" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="EmailAddr" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DoNotContactInd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="PreferredContactRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PhoneTypeCd nsC:PhoneTypeCd 0 1
CommunicationUseCd nsC:CommunicationUseCd 0 unbounded
PhoneNumber nsC:PhoneNumber 1 1
EmailAddr nsC:EmailAddr 0 1
DoNotContactInd nsC:DoNotContactInd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
PreferredContactRef nsC:PreferredContactRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:PhoneInfo
