Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: PilotInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

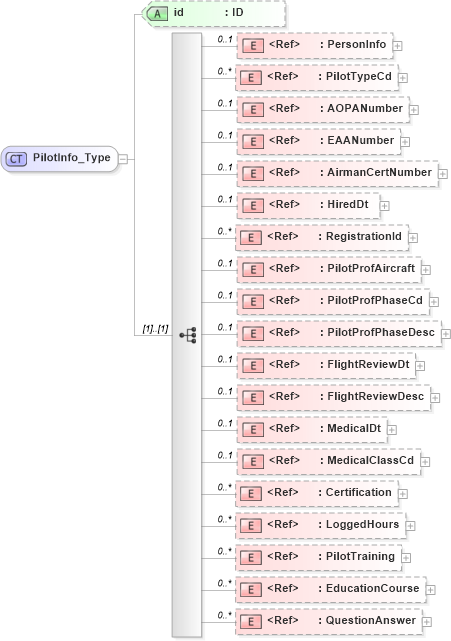

Collapse XSD Schema Diagram:
Drilldown into QuestionAnswer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EducationCourse in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotTraining in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LoggedHours in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Certification in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MedicalClassCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MedicalDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FlightReviewDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FlightReviewDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotProfPhaseDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotProfPhaseCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotProfAircraft in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RegistrationId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into HiredDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AirmanCertNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EAANumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AOPANumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PersonInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of PilotInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="PilotInfo_Type">
    <xsd:sequence>
        <xsd:element ref="PersonInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PilotTypeCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AOPANumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="EAANumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AirmanCertNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="HiredDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RegistrationId" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PilotProfAircraft" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PilotProfPhaseCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PilotProfPhaseDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FlightReviewDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FlightReviewDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MedicalDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MedicalClassCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Certification" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="LoggedHours" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PilotTraining" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EducationCourse" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QuestionAnswer" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PersonInfo nsC:PersonInfo 0 1
PilotTypeCd nsC:PilotTypeCd 0 unbounded
AOPANumber nsC:AOPANumber 0 1
EAANumber nsC:EAANumber 0 1
AirmanCertNumber nsC:AirmanCertNumber 0 1
HiredDt nsC:HiredDt 0 1
RegistrationId nsC:RegistrationId 0 unbounded
PilotProfAircraft nsC:PilotProfAircraft 0 1
PilotProfPhaseCd nsC:PilotProfPhaseCd 0 1
PilotProfPhaseDesc nsC:PilotProfPhaseDesc 0 1
FlightReviewDt nsC:FlightReviewDt 0 1
FlightReviewDesc nsC:FlightReviewDesc 0 1
MedicalDt nsC:MedicalDt 0 1
MedicalClassCd nsC:MedicalClassCd 0 1
Certification nsC:Certification 0 unbounded
LoggedHours nsC:LoggedHours 0 unbounded
PilotTraining nsC:PilotTraining 0 unbounded
EducationCourse nsC:EducationCourse 0 unbounded
QuestionAnswer nsC:QuestionAnswer 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:PilotInfo
