Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: PilotTraining_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

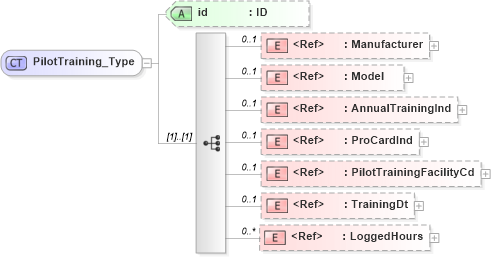

Collapse XSD Schema Diagram:
Drilldown into LoggedHours in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TrainingDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PilotTrainingFacilityCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProCardInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AnnualTrainingInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Model in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Manufacturer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of PilotTraining_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="PilotTraining_Type">
    <xsd:sequence>
        <xsd:element ref="Manufacturer" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Model" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AnnualTrainingInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ProCardInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PilotTrainingFacilityCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TrainingDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LoggedHours" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Manufacturer nsC:Manufacturer 0 1
Model nsC:Model 0 1
AnnualTrainingInd nsC:AnnualTrainingInd 0 1
ProCardInd nsC:ProCardInd 0 1
PilotTrainingFacilityCd nsC:PilotTrainingFacilityCd 0 1
TrainingDt nsC:TrainingDt 0 1
LoggedHours nsC:LoggedHours 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:PilotTraining
