Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ProducerInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

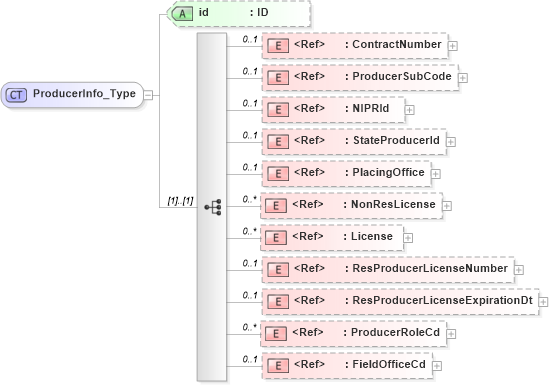

Collapse XSD Schema Diagram:
Drilldown into FieldOfficeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProducerRoleCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ResProducerLicenseExpirationDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ResProducerLicenseNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into License in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NonResLicense in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PlacingOffice in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StateProducerId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NIPRId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProducerSubCode in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ContractNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ProducerInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ProducerInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ContractNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ProducerSubCode" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NIPRId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StateProducerId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PlacingOffice" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NonResLicense" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="License" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResProducerLicenseNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ResProducerLicenseExpirationDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ProducerRoleCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FieldOfficeCd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContractNumber nsC:ContractNumber 0 1
ProducerSubCode nsC:ProducerSubCode 0 1
NIPRId nsC:NIPRId 0 1
StateProducerId nsC:StateProducerId 0 1
PlacingOffice nsC:PlacingOffice 0 1
NonResLicense nsC:NonResLicense 0 unbounded
License nsC:License 0 unbounded
ResProducerLicenseNumber nsC:ResProducerLicenseNumber 0 1
ResProducerLicenseExpirationDt nsC:ResProducerLicenseExpirationDt 0 1
ProducerRoleCd nsC:ProducerRoleCd 0 unbounded
FieldOfficeCd nsC:FieldOfficeCd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ProducerInfo
