Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ScheduledIndemnityInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract
Collapse XSD Schema Diagram:

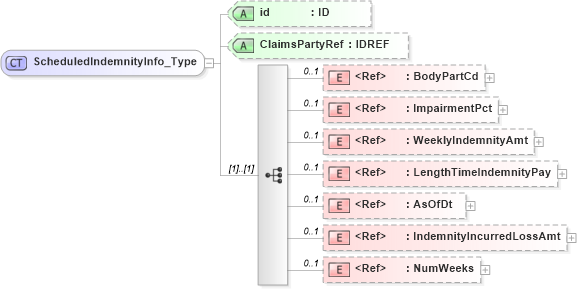

Drilldown into NumWeeks in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into IndemnityIncurredLossAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AsOfDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LengthTimeIndemnityPay in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WeeklyIndemnityAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ImpairmentPct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BodyPartCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ScheduledIndemnityInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ScheduledIndemnityInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BodyPartCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ImpairmentPct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="WeeklyIndemnityAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LengthTimeIndemnityPay" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AsOfDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="IndemnityIncurredLossAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumWeeks" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="ClaimsPartyRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BodyPartCd nsC:BodyPartCd 0 1
ImpairmentPct nsC:ImpairmentPct 0 1
WeeklyIndemnityAmt nsC:WeeklyIndemnityAmt 0 1
LengthTimeIndemnityPay nsC:LengthTimeIndemnityPay 0 1
AsOfDt nsC:AsOfDt 0 1
IndemnityIncurredLossAmt nsC:IndemnityIncurredLossAmt 0 1
NumWeeks nsC:NumWeeks 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
ClaimsPartyRef nsC:ClaimsPartyRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ScheduledIndemnityInfo
