Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: SignonRq_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

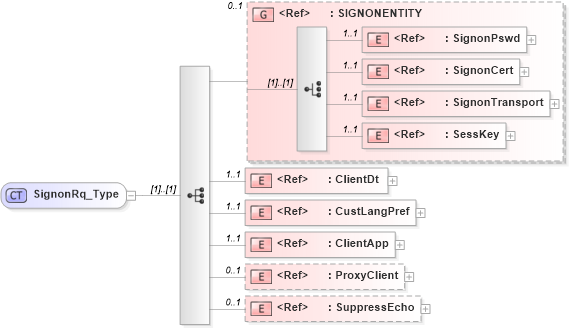

Collapse XSD Schema Diagram:
Drilldown into SuppressEcho in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProxyClient in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClientApp in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CustLangPref in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClientDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SessKey in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SignonTransport in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SignonCert in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SignonPswd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SIGNONENTITY in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of SignonRq_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SignonRq_Type">
    <xsd:sequence>
        <xsd:group ref="SIGNONENTITY" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClientDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="CustLangPref" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ClientApp" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ProxyClient" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SuppressEcho" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SignonPswd nsC:SignonPswd 1 1
SignonCert nsC:SignonCert 1 1
SignonTransport nsC:SignonTransport 1 1
SessKey nsC:SessKey 1 1
ClientDt nsC:ClientDt 1 1
CustLangPref nsC:CustLangPref 1 1
ClientApp nsC:ClientApp 1 1
ProxyClient nsC:ProxyClient 0 1
SuppressEcho nsC:SuppressEcho 0 1
<xs:group> nsC:SIGNONENTITY 0 1
Collapse Derivation Tree:
Collapse References:
nsC:SignonRq
