Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: SPExtensionsSyncRs_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

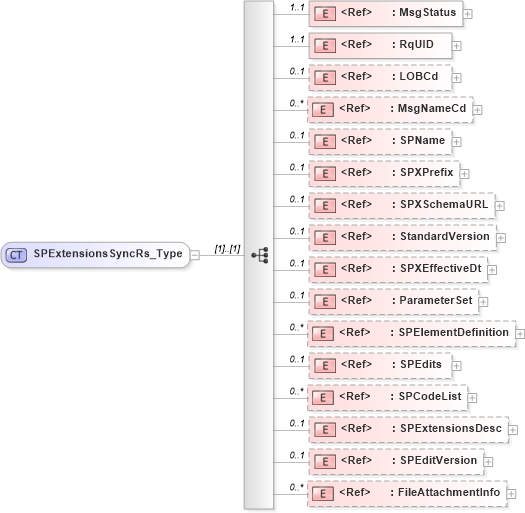

Collapse XSD Schema Diagram:
Drilldown into FileAttachmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPEditVersion in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPExtensionsDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPCodeList in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPEdits in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPElementDefinition in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ParameterSet in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPXEffectiveDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StandardVersion in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPXSchemaURL in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPXPrefix in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPName in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgNameCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LOBCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgStatus in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of SPExtensionsSyncRs_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SPExtensionsSyncRs_Type">
    <xsd:sequence>
        <xsd:element ref="MsgStatus" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RqUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="LOBCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MsgNameCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPName" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPXPrefix" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPXSchemaURL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StandardVersion" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPXEffectiveDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ParameterSet" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPElementDefinition" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPEdits" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPCodeList" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SPExtensionsDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SPEditVersion" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FileAttachmentInfo" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MsgStatus nsC:MsgStatus 1 1
RqUID nsC:RqUID 1 1
LOBCd nsC:LOBCd 0 1
MsgNameCd nsC:MsgNameCd 0 unbounded
SPName nsC:SPName 0 1
SPXPrefix nsC:SPXPrefix 0 1
SPXSchemaURL nsC:SPXSchemaURL 0 1
StandardVersion nsC:StandardVersion 0 1
SPXEffectiveDt nsC:SPXEffectiveDt 0 1
ParameterSet nsC:ParameterSet 0 1
SPElementDefinition nsC:SPElementDefinition 0 unbounded
SPEdits nsC:SPEdits 0 1
SPCodeList nsC:SPCodeList 0 unbounded
SPExtensionsDesc nsC:SPExtensionsDesc 0 1
SPEditVersion nsC:SPEditVersion 0 1
FileAttachmentInfo nsC:FileAttachmentInfo 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsC:SPExtensionsSyncRs
