Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: SubLocation_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

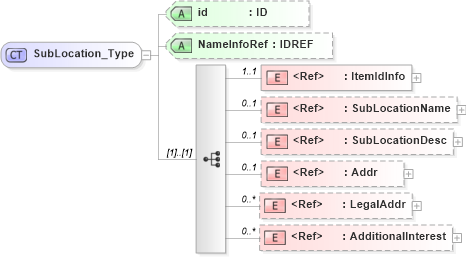

Collapse XSD Schema Diagram:
Drilldown into AdditionalInterest in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LegalAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SubLocationDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SubLocationName in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NameInfoRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of SubLocation_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SubLocation_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SubLocationName" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SubLocationDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Addr" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LegalAddr" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalInterest" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="NameInfoRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIdInfo nsC:ItemIdInfo 1 1
SubLocationName nsC:SubLocationName 0 1
SubLocationDesc nsC:SubLocationDesc 0 1
Addr nsC:Addr 0 1
LegalAddr nsC:LegalAddr 0 unbounded
AdditionalInterest nsC:AdditionalInterest 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
NameInfoRef nsC:NameInfoRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:SubLocation
