Definition Type: ComplexType
Name: SuretyBondDetailInqInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

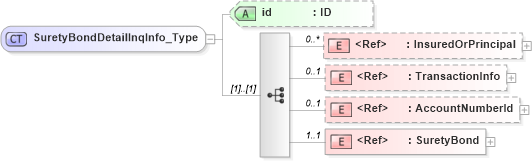

Collapse XSD Schema Diagram:
Drilldown into SuretyBond in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccountNumberId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuredOrPrincipal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of SuretyBondDetailInqInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SuretyBondDetailInqInfo_Type">
    <xsd:sequence>
        <xsd:element ref="InsuredOrPrincipal" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="TransactionInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AccountNumberId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SuretyBond" minOccurs="1" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
InsuredOrPrincipal nsC:InsuredOrPrincipal 0 unbounded
TransactionInfo nsC:TransactionInfo 0 1
AccountNumberId nsC:AccountNumberId 0 1
SuretyBond nsC:SuretyBond 1 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:SuretyBondDetailInqInfo
