Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: SuretyBondSyncRq_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

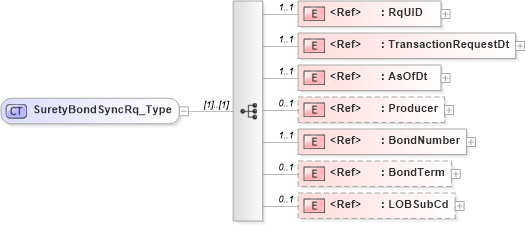

Collapse XSD Schema Diagram:
Drilldown into LOBSubCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BondTerm in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BondNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Producer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AsOfDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionRequestDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of SuretyBondSyncRq_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="SuretyBondSyncRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="TransactionRequestDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="AsOfDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="Producer" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BondNumber" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="BondTerm" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LOBSubCd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID nsC:RqUID 1 1
TransactionRequestDt nsC:TransactionRequestDt 1 1
AsOfDt nsC:AsOfDt 1 1
Producer nsC:Producer 0 1
BondNumber nsC:BondNumber 1 1
BondTerm nsC:BondTerm 0 1
LOBSubCd nsC:LOBSubCd 0 1
Collapse Derivation Tree:
Collapse References:
nsC:SuretyBondSyncRq
