Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: TransactionInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

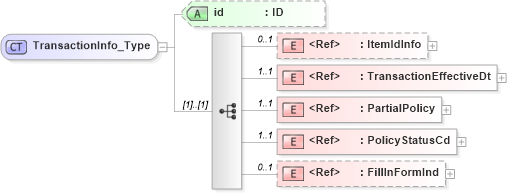

Collapse XSD Schema Diagram:
Drilldown into FillInFormInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PolicyStatusCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PartialPolicy in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionEffectiveDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of TransactionInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="TransactionInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TransactionEffectiveDt" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PartialPolicy" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PolicyStatusCd" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="FillInFormInd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIdInfo nsC:ItemIdInfo 0 1
TransactionEffectiveDt nsC:TransactionEffectiveDt 1 1
PartialPolicy nsC:PartialPolicy 1 1
PolicyStatusCd nsC:PolicyStatusCd 1 1
FillInFormInd nsC:FillInFormInd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:TransactionInfo
