Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: TruckersZone_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

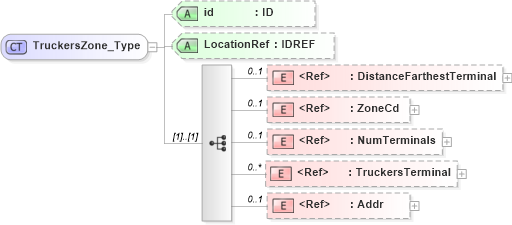

Collapse XSD Schema Diagram:
Drilldown into Addr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TruckersTerminal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumTerminals in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ZoneCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DistanceFarthestTerminal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LocationRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of TruckersZone_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="TruckersZone_Type">
    <xsd:sequence>
        <xsd:element ref="DistanceFarthestTerminal" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ZoneCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumTerminals" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TruckersTerminal" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="Addr" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="LocationRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DistanceFarthestTerminal nsC:DistanceFarthestTerminal 0 1
ZoneCd nsC:ZoneCd 0 1
NumTerminals nsC:NumTerminals 0 1
TruckersTerminal nsC:TruckersTerminal 0 unbounded
Addr nsC:Addr 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
LocationRef nsC:LocationRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:TruckersZone
