Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: TurbineAircraft_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

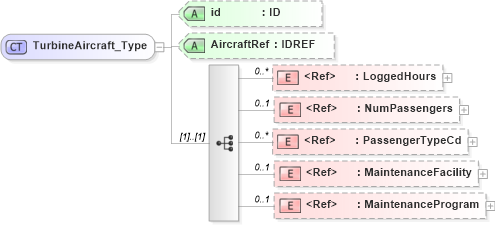

Collapse XSD Schema Diagram:
Drilldown into MaintenanceProgram in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MaintenanceFacility in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PassengerTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumPassengers in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LoggedHours in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AircraftRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of TurbineAircraft_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="TurbineAircraft_Type">
    <xsd:sequence>
        <xsd:element ref="LoggedHours" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NumPassengers" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PassengerTypeCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MaintenanceFacility" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MaintenanceProgram" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="AircraftRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LoggedHours nsC:LoggedHours 0 unbounded
NumPassengers nsC:NumPassengers 0 1
PassengerTypeCd nsC:PassengerTypeCd 0 unbounded
MaintenanceFacility nsC:MaintenanceFacility 0 1
MaintenanceProgram nsC:MaintenanceProgram 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
AircraftRef nsC:AircraftRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:TurbineAircraft
