Docs for schema item ViewTransactionInfo_Type in Acord - Property & Casualty/Surety Standards Program

Documentation for Acord - Property & Casualty/Surety Standards Program

Definition Type:	ComplexType
Name:	ViewTransactionInfo_Type
Namespace:	http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema:	acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

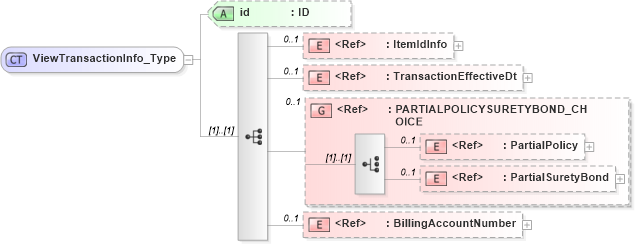

XSD Schema Diagram:

XSD Diagram of ViewTransactionInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)

XSD Schema Code:

<xsd:complexType name="ViewTransactionInfo_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TransactionEffectiveDt" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="PARTIALPOLICYSURETYBOND_CHOICE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingAccountNumber" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
ItemIdInfo	nsC:ItemIdInfo	0	1
TransactionEffectiveDt	nsC:TransactionEffectiveDt	0	1
PartialPolicy	nsC:PartialPolicy	0	1
PartialSuretyBond	nsC:PartialSuretyBond	0	1
BillingAccountNumber	nsC:BillingAccountNumber	0	1
<xs:group>	nsC:PARTIALPOLICYSURETYBOND_CHOICE	0	1

Child Attributes:

Name	Type	Default Value	Use
id	nsC:id		(Optional)

Derivation Tree:
	*ViewTransactionInfo_Type* nsC:ViewTransactionInfo

References:
	nsC:ViewTransactionInfo
