Definition Type: Element
Name: BOD
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: b2mml:BODType
Containing Schema: B2MML-V0401-ConfirmBOD.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

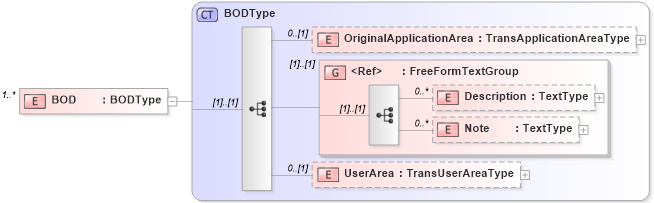

Drilldown into UserArea in schema b2mml-v0401-confirmbod_xsd Drilldown into Note in schema b2mml-v0401-confirmbod_xsd Drilldown into Description in schema b2mml-v0401-confirmbod_xsd Drilldown into FreeFormTextGroup in schema b2mml-v0401-confirmbod_xsd Drilldown into OriginalApplicationArea in schema b2mml-v0401-confirmbod_xsd Drilldown into BODType in schema b2mml-v0401-confirmbod_xsdXSD Diagram of BOD in schema b2mml-v0401-confirmbod_xsd (Business To Manufacturing Markup Language)
Collapse XSD Schema Code:
<xsd:element name="BOD" type="BODType" minOccurs="1" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalApplicationArea b2mml:OriginalApplicationArea 0 (1)
Description b2mml:Description 0 unbounded
Note b2mml:Note 0 unbounded
UserArea b2mml:UserArea 0 (1)
<xs:group> b2mml:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
