Documentation for Business To Manufacturing Markup Language
Definition Type: ComplexType
Name: CodeType
Type: normalizedString:http://www.w3.org/2001/XMLSchema
Containing Schema: B2MML-V0401-CoreComponents.xsd
Abstract

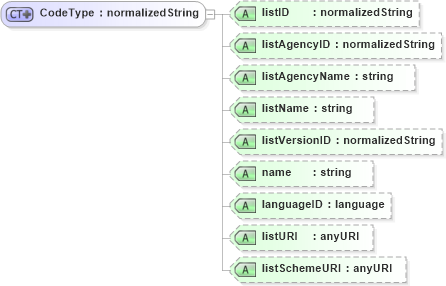

Collapse XSD Schema Diagram:
Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema XSD Diagram of CodeType in schema b2mml-v0401-corecomponents_xsd (Business To Manufacturing Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="CodeType">
    <xsd:simpleContent>
        <xsd:extension base="xsd:normalizedString">
            <xsd:attribute name="listID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="listAgencyID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="listAgencyName" type="xsd:string" use="optional" />
            <xsd:attribute name="listName" type="xsd:string" use="optional" />
            <xsd:attribute name="listVersionID" type="xsd:normalizedString" use="optional" />
            <xsd:attribute name="name" type="xsd:string" use="optional" />
            <xsd:attribute name="languageID" type="xsd:language" use="optional" />
            <xsd:attribute name="listURI" type="xsd:anyURI" use="optional" />
            <xsd:attribute name="listSchemeURI" type="xsd:anyURI" use="optional" />
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID Unresolved link to listid1 Optional
listAgencyID Unresolved link to listagencyid1 Optional
listAgencyName Unresolved link to listagencyname1 Optional
listName Unresolved link to listname1 Optional
listVersionID Unresolved link to listversionid1 Optional
name Unresolved link to name1 Optional
languageID Unresolved link to languageid1 Optional
listURI Unresolved link to listuri1 Optional
listSchemeURI Unresolved link to listschemeuri Optional
