Documentation for Business To Manufacturing Markup Language
Definition Type: ComplexType
Name: EquipmentElementLevel1Type
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: Unresolved link to codetype2
Containing Schema: B2MML-V0401-Common.xsd
Abstract
Collapse XSD Schema Diagram:

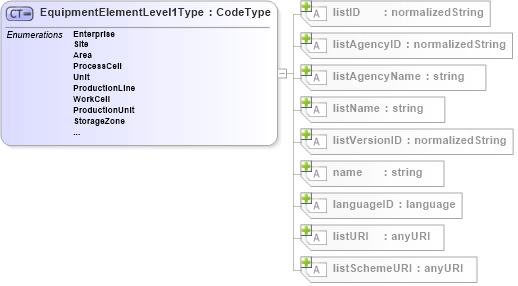

Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema XSD Diagram of EquipmentElementLevel1Type in schema b2mml-v0401-common_xsd (Business To Manufacturing Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="EquipmentElementLevel1Type">
    <xsd:simpleContent>
        <xsd:restriction base="CodeType">
            <xsd:enumeration value="Enterprise" />
            <xsd:enumeration value="Site" />
            <xsd:enumeration value="Area" />
            <xsd:enumeration value="ProcessCell" />
            <xsd:enumeration value="Unit" />
            <xsd:enumeration value="ProductionLine" />
            <xsd:enumeration value="WorkCell" />
            <xsd:enumeration value="ProductionUnit" />
            <xsd:enumeration value="StorageZone" />
            <xsd:enumeration value="StorageUnit" />
            <xsd:enumeration value="WorkCenter" />
            <xsd:enumeration value="WorkUnit" />
            <!-- Added for BatchML V0401 -->
            <xsd:enumeration value="EquipmentModule" />
            <xsd:enumeration value="ControlModule" />
            <xsd:enumeration value="Other" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID Unresolved link to listid1 Optional
listAgencyID Unresolved link to listagencyid1 Optional
listAgencyName Unresolved link to listagencyname1 Optional
listName Unresolved link to listname1 Optional
listVersionID Unresolved link to listversionid1 Optional
name Unresolved link to name1 Optional
languageID Unresolved link to languageid1 Optional
listURI Unresolved link to listuri1 Optional
listSchemeURI Unresolved link to listschemeuri Optional
Collapse Facets:
Facet Value
Enumeration Enterprise
Enumeration Site
Enumeration Area
Enumeration ProcessCell
Enumeration Unit
Enumeration ProductionLine
Enumeration WorkCell
Enumeration ProductionUnit
Enumeration StorageZone
Enumeration StorageUnit
Enumeration WorkCenter
Enumeration WorkUnit
Enumeration EquipmentModule
Enumeration ControlModule
Enumeration Other
Collapse Derivation Tree:
  • Unresolved link to codetype2
    • EquipmentElementLevel1Type
      • b2mml:EquipmentElementLevelType
        • Unresolved link to equipmentelementlevel1
        • Unresolved link to equipmentelementlevel2
        • Unresolved link to equipmentelementlevel3
        • Unresolved link to equipmentelementlevel4
        • Unresolved link to equipmentelementlevel5
        • Unresolved link to equipmentelementlevel6
        • Unresolved link to equipmentelementlevel7
        • Unresolved link to equipmentelementlevel8
        • Unresolved link to equipmentelementlevel9
        • Unresolved link to equipmentelementlevel10
Collapse References:
b2mml:EquipmentElementLevelType
