Documentation for Business To Manufacturing Markup Language
Definition Type: ComplexType
Name: MaterialUse1Type
Namespace: http://www.wbf.org/xml/B2MML-V0401
Type: Unresolved link to codetype2
Containing Schema: B2MML-V0401-Common.xsd
Abstract
Collapse XSD Schema Diagram:

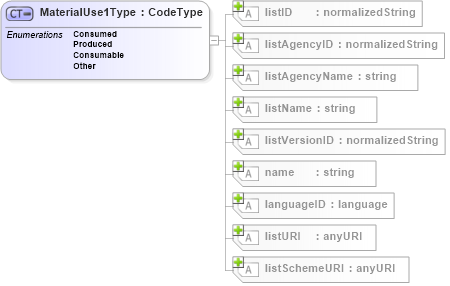

Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema Drilldown into in schema XSD Diagram of MaterialUse1Type in schema b2mml-v0401-common_xsd (Business To Manufacturing Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="MaterialUse1Type">
    <xsd:simpleContent>
        <xsd:restriction base="CodeType">
            <xsd:enumeration value="Consumed" />
            <xsd:enumeration value="Produced" />
            <xsd:enumeration value="Consumable" />
            <xsd:enumeration value="Other" />
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
listID Unresolved link to listid1 Optional
listAgencyID Unresolved link to listagencyid1 Optional
listAgencyName Unresolved link to listagencyname1 Optional
listName Unresolved link to listname1 Optional
listVersionID Unresolved link to listversionid1 Optional
name Unresolved link to name1 Optional
languageID Unresolved link to languageid1 Optional
listURI Unresolved link to listuri1 Optional
listSchemeURI Unresolved link to listschemeuri Optional
Collapse Facets:
Facet Value
Enumeration Consumed
Enumeration Produced
Enumeration Consumable
Enumeration Other
Collapse Derivation Tree:
  • Unresolved link to codetype2
    • MaterialUse1Type
      • b2mml:MaterialUseType
        • Unresolved link to materialuse
        • Unresolved link to materialuse1
        • Unresolved link to materialuse2
        • Unresolved link to materialuse3
        • Unresolved link to materialuse4
        • Unresolved link to materialuse5
Collapse References:
b2mml:MaterialUseType
