Documentation for CDF Markup Language (CDFML)
Definition Type: Element
Name: cdfFileInfo
Namespace: http://cdf.gsfc.nasa.gov
Containing Schema: cdf.xsd
Abstract

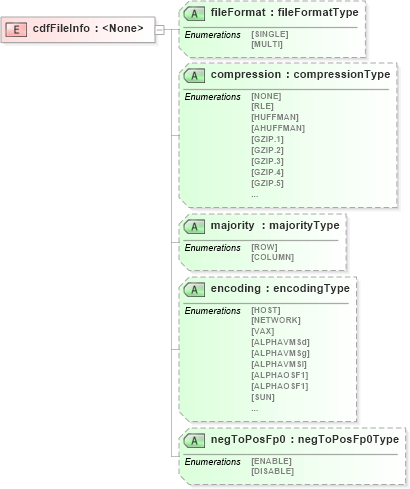

Collapse XSD Schema Diagram:
Drilldown into negToPosFp0 in schema cdf_xsd Drilldown into encoding in schema cdf_xsd Drilldown into majority in schema cdf_xsd Drilldown into compression in schema cdf_xsd Drilldown into fileFormat in schema cdf_xsdXSD Diagram of cdfFileInfo in schema cdf_xsd (CDF Markup Language (CDFML))
Collapse XSD Schema Code:
<xs:element name="cdfFileInfo">
    <xs:complexType>
        <xs:attribute name="fileFormat" type="fileFormatType" />
        <xs:attribute name="compression" type="compressionType" />
        <xs:attribute name="majority" type="majorityType" />
        <xs:attribute name="encoding" type="encodingType" />
        <xs:attribute name="negToPosFp0" type="negToPosFp0Type" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
fileFormat nsA:fileFormat (Optional)
compression nsA:compression (Optional)
majority nsA:majority (Optional)
encoding nsA:encoding (Optional)
negToPosFp0 nsA:negToPosFp0 (Optional)
