Documentation for CDF Markup Language (CDFML)
Definition Type: Element
Name: cdfVarInfo
Namespace: http://cdf.gsfc.nasa.gov
Containing Schema: cdf.xsd
Abstract

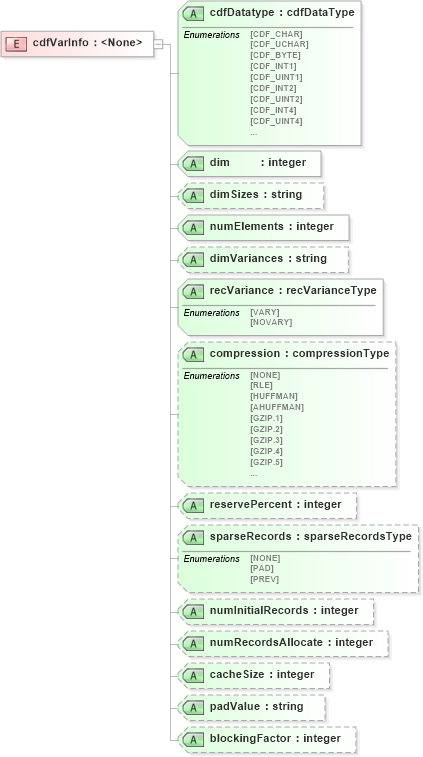

Collapse XSD Schema Diagram:
Drilldown into blockingFactor in schema cdf_xsd Drilldown into padValue in schema cdf_xsd Drilldown into cacheSize in schema cdf_xsd Drilldown into numRecordsAllocate in schema cdf_xsd Drilldown into numInitialRecords in schema cdf_xsd Drilldown into sparseRecords in schema cdf_xsd Drilldown into reservePercent in schema cdf_xsd Drilldown into compression in schema cdf_xsd Drilldown into recVariance in schema cdf_xsd Drilldown into dimVariances in schema cdf_xsd Drilldown into numElements in schema cdf_xsd Drilldown into dimSizes in schema cdf_xsd Drilldown into dim in schema cdf_xsd Drilldown into cdfDatatype in schema cdf_xsdXSD Diagram of cdfVarInfo in schema cdf_xsd (CDF Markup Language (CDFML))
Collapse XSD Schema Code:
<xs:element name="cdfVarInfo">
    <xs:complexType>
        <xs:attribute name="cdfDatatype" type="cdfDataType" use="required" />
        <xs:attribute name="dim" type="xs:integer" use="required" />
        <xs:attribute name="dimSizes" type="xs:string" />
        <xs:attribute name="numElements" type="xs:integer" use="required" />
        <xs:attribute name="dimVariances" type="xs:string" />
        <xs:attribute name="recVariance" use="required" type="recVarianceType" />
        <xs:attribute name="compression" type="compressionType" />
        <xs:attribute name="reservePercent" type="xs:integer" />
        <xs:attribute name="sparseRecords" type="sparseRecordsType" />
        <xs:attribute name="numInitialRecords" type="xs:integer" />
        <xs:attribute name="numRecordsAllocate" type="xs:integer" />
        <xs:attribute name="cacheSize" type="xs:integer" />
        <xs:attribute name="padValue" type="xs:string" />
        <xs:attribute name="blockingFactor" type="xs:integer" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
cdfDatatype nsA:cdfDatatype Required
dim nsA:dim Required
dimSizes nsA:dimSizes (Optional)
numElements nsA:numElements Required
dimVariances nsA:dimVariances (Optional)
recVariance nsA:recVariance Required
compression nsA:compression (Optional)
reservePercent nsA:reservePercent (Optional)
sparseRecords nsA:sparseRecords (Optional)
numInitialRecords nsA:numInitialRecords (Optional)
numRecordsAllocate nsA:numRecordsAllocate (Optional)
cacheSize nsA:cacheSize (Optional)
padValue nsA:padValue (Optional)
blockingFactor nsA:blockingFactor (Optional)
