Documentation for Timed Text (TT) Authoring Format 1.0 – Distribution Format Exchange Profile (DFXP)
Definition Type: Element
Name: body
Namespace: http://www.w3.org/2006/10/ttaf1
Type: tt:body.eltype
Containing Schema: ttaf1-dfxp-content.xsd
Abstract

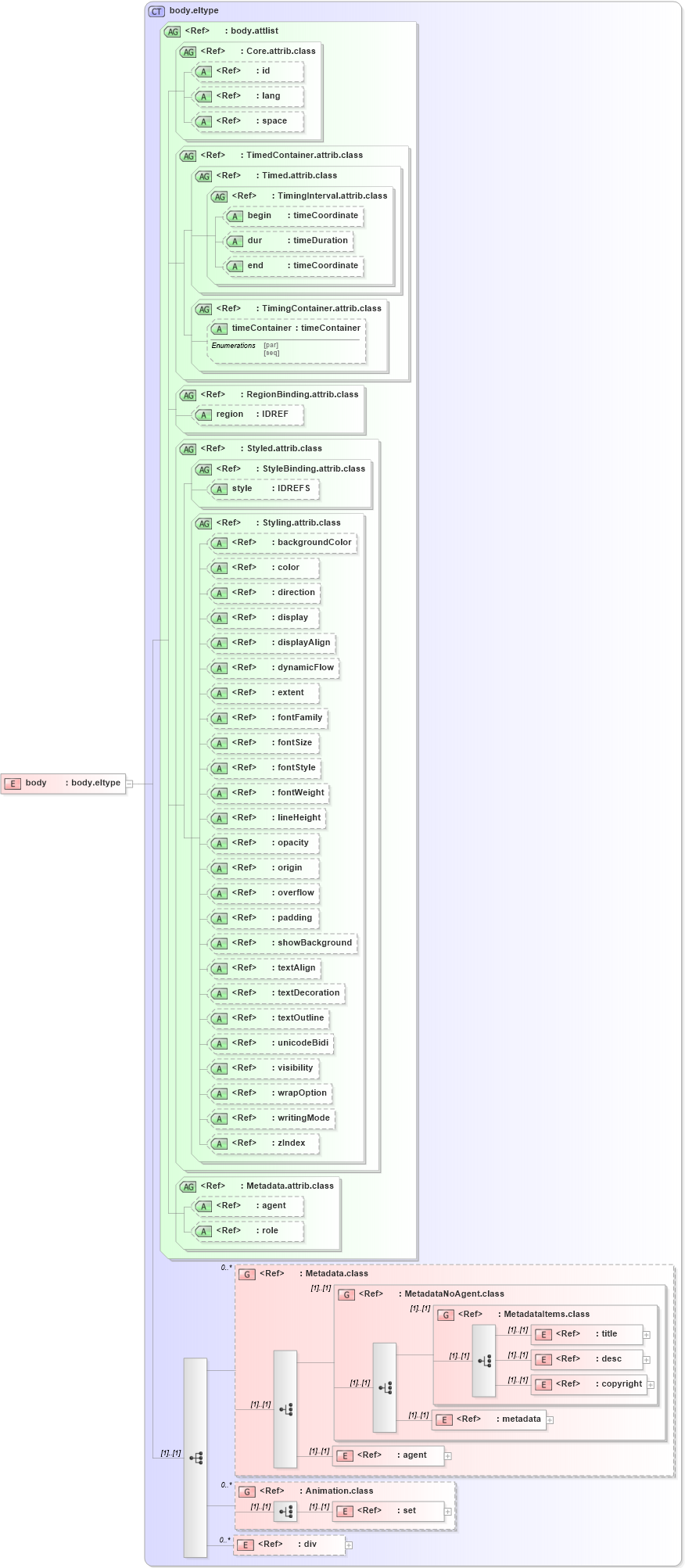

Collapse XSD Schema Diagram:
Drilldown into div in schema ttaf1-dfxp-content_xsd Drilldown into set in schema ttaf1-dfxp-animation_xsd Drilldown into Animation.class in schema ttaf1-dfxp-animation_xsd Drilldown into agent in schema ttaf1-dfxp-metadata-items_xsd Drilldown into metadata in schema ttaf1-dfxp-metadata_xsd Drilldown into copyright in schema ttaf1-dfxp-metadata-items_xsd Drilldown into desc in schema ttaf1-dfxp-metadata-items_xsd Drilldown into title in schema ttaf1-dfxp-metadata-items_xsd Drilldown into MetadataItems.class in schema ttaf1-dfxp-metadata-items_xsd Drilldown into MetadataNoAgent.class in schema ttaf1-dfxp-metadata_xsd Drilldown into Metadata.class in schema ttaf1-dfxp-metadata_xsd Drilldown into role in schema ttaf1-dfxp-metadata-attribs_xsd Drilldown into agent in schema ttaf1-dfxp-metadata-attribs_xsd Drilldown into Metadata.attrib.class in schema ttaf1-dfxp-metadata-attribs_xsd Drilldown into zIndex in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into writingMode in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into wrapOption in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into visibility in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into unicodeBidi in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into textOutline in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into textDecoration in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into textAlign in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into showBackground in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into padding in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into overflow in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into origin in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into opacity in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into lineHeight in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into fontWeight in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into fontStyle in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into fontSize in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into fontFamily in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into extent in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into dynamicFlow in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into displayAlign in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into display in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into direction in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into color in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into backgroundColor in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into Styling.attrib.class in schema ttaf1-dfxp-styling-attribs_xsd Drilldown into style in schema ttaf1-dfxp-styling_xsd Drilldown into StyleBinding.attrib.class in schema ttaf1-dfxp-styling_xsd Drilldown into Styled.attrib.class in schema ttaf1-dfxp-styling_xsd Drilldown into region in schema ttaf1-dfxp-layout_xsd Drilldown into RegionBinding.attrib.class in schema ttaf1-dfxp-layout_xsd Drilldown into timeContainer in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into TimingContainer.attrib.class in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into end in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into dur in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into begin in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into TimingInterval.attrib.class in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into Timed.attrib.class in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into TimedContainer.attrib.class in schema ttaf1-dfxp-timing-attribs_xsd Drilldown into space in schema xml_xsd Drilldown into lang in schema xml_xsd Drilldown into id in schema xml_xsd Drilldown into Core.attrib.class in schema ttaf1-dfxp-core-attribs_xsd Drilldown into body.attlist in schema ttaf1-dfxp-content_xsd Drilldown into body.eltype in schema ttaf1-dfxp-content_xsdXSD Diagram of body in schema ttaf1-dfxp-content_xsd (Timed Text (TT) Authoring Format 1.0 – Distribution Format Exchange Profile (DFXP))
Collapse XSD Schema Code:
<xs:element name="body" type="tt:body.eltype" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title ttm:title (1) (1)
desc ttm:desc (1) (1)
copyright ttm:copyright (1) (1)
metadata tt:metadata (1) (1)
agent ttm:agent (1) (1)
set tt:set (1) (1)
div tt:div 0 unbounded
<xs:group> tt:Metadata.class 0 unbounded
<xs:group> tt:MetadataNoAgent.class (1) (1)
<xs:group> ttm:MetadataItems.class (1) (1)
<xs:group> tt:Animation.class 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xml:id (Optional)
lang xml:lang (Optional)
space xml:space (Optional)
begin tt:begin (Optional)
dur tt:dur (Optional)
end tt:end (Optional)
timeContainer tt:timeContainer (Optional)
region tt:region (Optional)
style tt:style (Optional)
backgroundColor tts:backgroundColor (Optional)
color tts:color (Optional)
direction tts:direction (Optional)
display tts:display (Optional)
displayAlign tts:displayAlign (Optional)
dynamicFlow tts:dynamicFlow (Optional)
extent tts:extent (Optional)
fontFamily tts:fontFamily (Optional)
fontSize tts:fontSize (Optional)
fontStyle tts:fontStyle (Optional)
fontWeight tts:fontWeight (Optional)
lineHeight tts:lineHeight (Optional)
opacity tts:opacity (Optional)
origin tts:origin (Optional)
overflow tts:overflow (Optional)
padding tts:padding (Optional)
showBackground tts:showBackground (Optional)
textAlign tts:textAlign (Optional)
textDecoration tts:textDecoration (Optional)
textOutline tts:textOutline (Optional)
unicodeBidi tts:unicodeBidi (Optional)
visibility tts:visibility (Optional)
wrapOption tts:wrapOption (Optional)
writingMode tts:writingMode (Optional)
zIndex tts:zIndex (Optional)
agent ttm:agent (Optional)
role ttm:role (Optional)
Collapse Derivation Tree:
