Documentation for DWML - Digital Weather Markup Language
Definition Type: ComplexType
Name: areaType
Containing Schema: location.xsd
Abstract
Collapse XSD Schema Diagram:

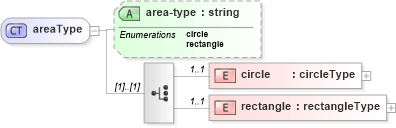

Drilldown into rectangle in schema location_xsd Drilldown into circle in schema location_xsd Drilldown into area-type in schema location_xsdXSD Diagram of areaType in schema location_xsd (DWML - Digital Weather Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="areaType">
    <xsd:choice>
        <xsd:element minOccurs="1" maxOccurs="1" name="circle" type="circleType" />
        <xsd:element minOccurs="1" maxOccurs="1" name="rectangle" type="rectangleType" />
    </xsd:choice>
    <xsd:attribute name="area-type" use="optional">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="circle" />
                <xsd:enumeration value="rectangle" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
circle circle 1 1
rectangle rectangle 1 1
Collapse Child Attributes:
Name Type Default Value Use
area-type area-type Optional
Collapse Derivation Tree:
Collapse References:
area
