Definition Type: ComplexType
Name: tempValType
Type: integer:http://www.w3.org/2001/XMLSchema
Containing Schema: parameters.xsd
Abstract

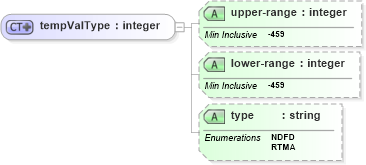

Collapse XSD Schema Diagram:
Drilldown into type in schema parameters_xsd Drilldown into lower-range in schema parameters_xsd Drilldown into upper-range in schema parameters_xsdXSD Diagram of tempValType in schema parameters_xsd (DWML - Digital Weather Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="tempValType">
    <xsd:simpleContent>
        <xsd:extension base="xsd:integer">
            <xsd:attribute name="upper-range" use="optional">
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="-459" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:attribute>
            <xsd:attribute name="lower-range" use="optional">
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:minInclusive value="-459" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:attribute>
            <xsd:attribute name="type" use="optional">
                <xsd:simpleType>
                    <xsd:restriction base="xsd:string">
                        <xsd:enumeration value="NDFD" />
                        <xsd:enumeration value="RTMA" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:attribute>
        </xsd:extension>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
upper-range upper-range Optional
lower-range lower-range Optional
type type Optional
Collapse Derivation Tree:
Collapse References:
value, value
