Documentation for DWML - Digital Weather Markup Language
Definition Type: ComplexType
Name: time-layoutElementType
Containing Schema: time_layout.xsd
Abstract

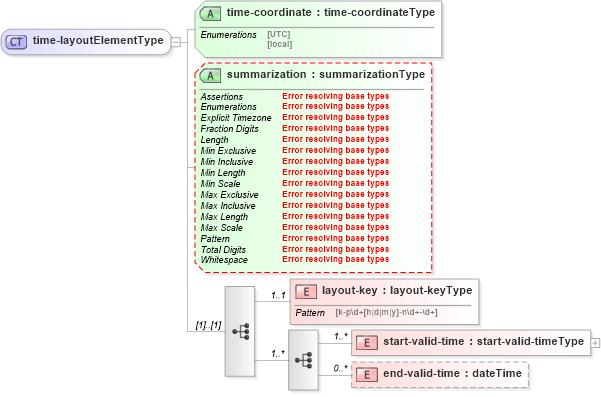

Collapse XSD Schema Diagram:
Drilldown into end-valid-time in schema time_layout_xsd Drilldown into start-valid-time in schema time_layout_xsd Drilldown into layout-key in schema time_layout_xsd Drilldown into summarization in schema time_layout_xsd Drilldown into time-coordinate in schema time_layout_xsdXSD Diagram of time-layoutElementType in schema time_layout_xsd (DWML - Digital Weather Markup Language)
Collapse XSD Schema Code:
<xsd:complexType name="time-layoutElementType">
    <xsd:sequence>
        <xsd:element minOccurs="1" maxOccurs="1" name="layout-key" type="layout-keyType" />
        <xsd:sequence minOccurs="1" maxOccurs="unbounded">
            <xsd:element minOccurs="1" maxOccurs="unbounded" name="start-valid-time" type="start-valid-timeType" />
            <xsd:element minOccurs="0" maxOccurs="unbounded" name="end-valid-time" type="xsd:dateTime" />
        </xsd:sequence>
    </xsd:sequence>
    <xsd:attribute name="time-coordinate" type="time-coordinateType" use="required" />
    <xsd:attribute name="summarization" type="summarizationType" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
layout-key layout-key 1 1
start-valid-time start-valid-time 1 unbounded
end-valid-time end-valid-time 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
time-coordinate time-coordinate Required
summarization summarization Optional
Collapse Derivation Tree:
Collapse References:
time-layout
