Documentation for DWML - Digital Weather Markup Language
Definition Type: Element
Name: value
Type: decimal:http://www.w3.org/2001/XMLSchema
Containing Schema: parameters.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

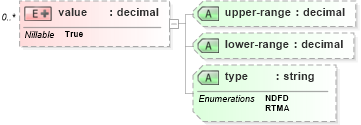

Drilldown into type in schema parameters_xsd Drilldown into lower-range in schema parameters_xsd Drilldown into upper-range in schema parameters_xsdXSD Diagram of value in schema parameters_xsd (DWML - Digital Weather Markup Language)
Collapse XSD Schema Code:
<xsd:element minOccurs="0" maxOccurs="unbounded" name="value" nillable="true">
    <xsd:complexType>
        <xsd:simpleContent>
            <xsd:extension base="xsd:decimal">
                <xsd:attribute name="upper-range" type="xsd:decimal" use="optional" />
                <xsd:attribute name="lower-range" type="xsd:decimal" use="optional" />
                <xsd:attribute name="type" use="optional">
                    <xsd:simpleType>
                        <xsd:restriction base="xsd:string">
                            <xsd:enumeration value="NDFD" />
                            <xsd:enumeration value="RTMA" />
                        </xsd:restriction>
                    </xsd:simpleType>
                </xsd:attribute>
            </xsd:extension>
        </xsd:simpleContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
upper-range upper-range Optional
lower-range lower-range Optional
type type Optional
