Documentation for DWML - Digital Weather Markup Language
Definition Type: Element
Name: valueWithUncertainty
Containing Schema: parameters.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

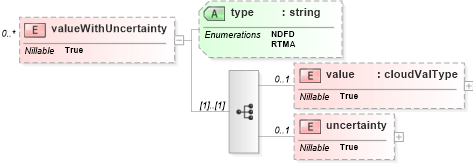

Collapse XSD Schema Diagram:
Drilldown into uncertainty in schema parameters_xsd Drilldown into value in schema parameters_xsd Drilldown into type in schema parameters_xsdXSD Diagram of valueWithUncertainty in schema parameters_xsd (DWML - Digital Weather Markup Language)
Collapse XSD Schema Code:
<xsd:element minOccurs="0" maxOccurs="unbounded" name="valueWithUncertainty" nillable="true">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element minOccurs="0" maxOccurs="1" name="value" nillable="true" type="cloudValType" />
            <xsd:element minOccurs="0" maxOccurs="1" name="uncertainty" nillable="true">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element minOccurs="0" maxOccurs="1" name="error">
                            <xsd:complexType>
                                <xsd:simpleContent>
                                    <xsd:extension base="xsd:nonNegativeInteger">
                                        <xsd:attribute default="+/-" name="qualifier" use="optional">
                                            <xsd:simpleType>
                                                <xsd:restriction base="xsd:string">
                                                    <xsd:enumeration value="+/-" />
                                                    <xsd:enumeration value="+" />
                                                    <xsd:enumeration value="-" />
                                                    <xsd:enumeration value="%" />
                                                </xsd:restriction>
                                            </xsd:simpleType>
                                        </xsd:attribute>
                                    </xsd:extension>
                                </xsd:simpleContent>
                            </xsd:complexType>
                        </xsd:element>
                    </xsd:sequence>
                    <xsd:attribute name="type" use="required">
                        <xsd:simpleType>
                            <xsd:restriction base="xsd:string">
                                <xsd:enumeration value="analysis error" />
                                <xsd:enumeration value="forecast" />
                            </xsd:restriction>
                        </xsd:simpleType>
                    </xsd:attribute>
                </xsd:complexType>
            </xsd:element>
        </xsd:sequence>
        <xsd:attribute name="type" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="NDFD" />
                    <xsd:enumeration value="RTMA" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
value value 0 1
uncertainty uncertainty 0 1
Collapse Child Attributes:
Name Type Default Value Use
type type Optional
