Documentation for IRS Electronic Tax Administration
Definition Type: Element
Name: Error
Namespace: http://www.irs.gov/efile
Containing Schema: efileMessage.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

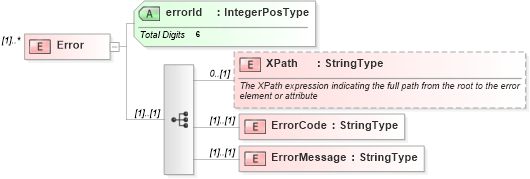

Collapse XSD Schema Diagram:
Drilldown into ErrorMessage in schema efilemessage_xsd Drilldown into ErrorCode in schema efilemessage_xsd Drilldown into XPath in schema efilemessage_xsd Drilldown into errorId in schema efilemessage_xsdXSD Diagram of Error in schema efilemessage_xsd (IRS Electronic Tax Administration)
Collapse XSD Schema Code:
<xsd:element name="Error" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="XPath" type="StringType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The XPath expression indicating the full path from the root to the error element or attribute</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ErrorCode" type="StringType" />
            <xsd:element name="ErrorMessage" type="StringType" />
        </xsd:sequence>
        <xsd:attribute name="errorId" use="required">
            <xsd:simpleType>
                <xsd:restriction base="IntegerPosType">
                    <xsd:totalDigits value="6" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
XPath nsA:XPath 0 (1)
ErrorCode nsA:ErrorCode (1) (1)
ErrorMessage nsA:ErrorMessage (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
errorId nsA:errorId Required
