Definition Type: ComplexType
Name: TransmissionAcknowledgementType
Namespace: http://www.irs.gov/efile
Containing Schema: efileMessage.xsd
Abstract
Collapse XSD Schema Diagram:

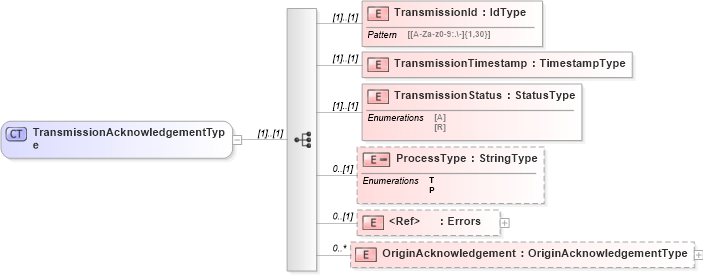

Drilldown into OriginAcknowledgement in schema efilemessage_xsd Drilldown into Errors in schema efilemessage_xsd Drilldown into ProcessType in schema efilemessage_xsd Drilldown into TransmissionStatus in schema efilemessage_xsd Drilldown into TransmissionTimestamp in schema efilemessage_xsd Drilldown into TransmissionId in schema efilemessage_xsdXSD Diagram of TransmissionAcknowledgementType in schema efilemessage_xsd (IRS Electronic Tax Administration)
Collapse XSD Schema Code:
<xsd:complexType name="TransmissionAcknowledgementType">
    <xsd:sequence>
        <xsd:element name="TransmissionId" type="IdType" />
        <xsd:element name="TransmissionTimestamp" type="TimestampType" />
        <xsd:element name="TransmissionStatus" type="StatusType" />
        <!-- Process Type -->
        <xsd:element name="ProcessType" minOccurs="0">
            <xsd:simpleType>
                <xsd:restriction base="StringType">
                    <xsd:enumeration value="T">
                        <xsd:annotation>
                            <xsd:documentation>Test</xsd:documentation>
                        </xsd:annotation>
                    </xsd:enumeration>
                    <xsd:enumeration value="P">
                        <xsd:annotation>
                            <xsd:documentation>Production</xsd:documentation>
                        </xsd:annotation>
                    </xsd:enumeration>
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element ref="Errors" minOccurs="0" />
        <xsd:element name="OriginAcknowledgement" type="OriginAcknowledgementType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransmissionId nsA:TransmissionId (1) (1)
TransmissionTimestamp nsA:TransmissionTimestamp (1) (1)
TransmissionStatus nsA:TransmissionStatus (1) (1)
ProcessType nsA:ProcessType 0 (1)
Errors nsA:Errors 0 (1)
OriginAcknowledgement nsA:OriginAcknowledgement 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:TransmissionAcknowledgement
